Syrup and Topping Bottle Filling Machines

Product Overview

Syrups and toppings cover a broad range of products, including maple syrup, fruit syrups, dessert sauces, chocolate syrups and other sweet toppings. Their viscosity can vary considerably between formulations and may also change with temperature and composition.

For filling applications, the main considerations are product viscosity, flow behaviour and the way the product behaves when filling stops. Sticky or viscous products can leave residue on the filling nozzle, which may result in dripping, stringing or product build-up around the bottle opening.

Filling System

Volumetric piston filling is commonly used for viscous syrups and toppings because the product is positively displaced during each filling cycle. The system can be configured for different filling volumes, bottle formats and production rates.

For more viscous or sticky products, nozzle design and shut-off performance are important. Anti-drip or positive shut-off arrangements can reduce stringing and dripping after the filling cycle, helping to keep the bottle neck and surrounding equipment clean before capping.

Where product viscosity changes significantly with temperature, the filling system may also require temperature control or a heated hopper to maintain consistent product flow.

Packaging

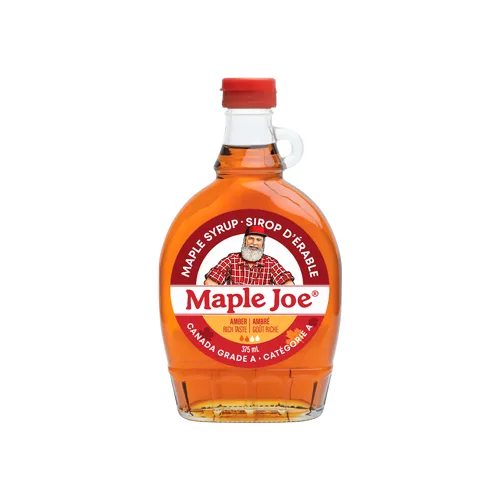

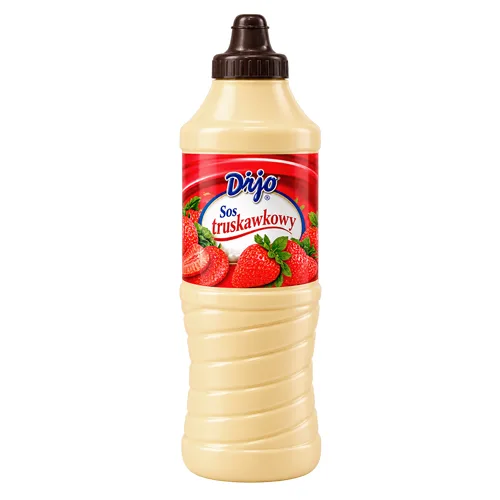

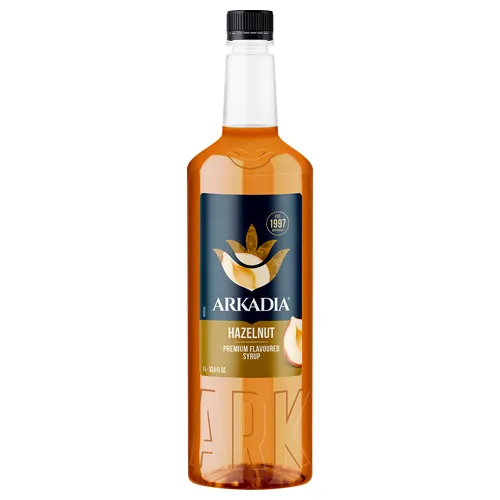

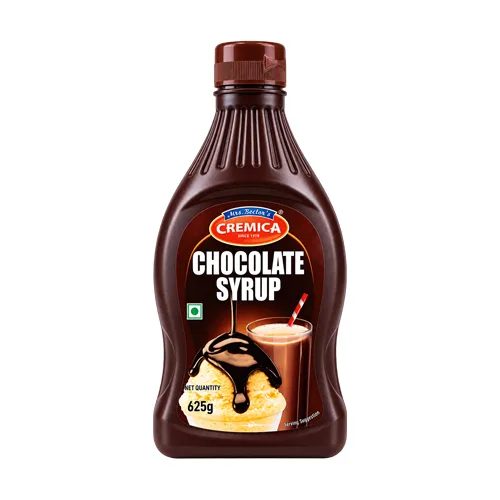

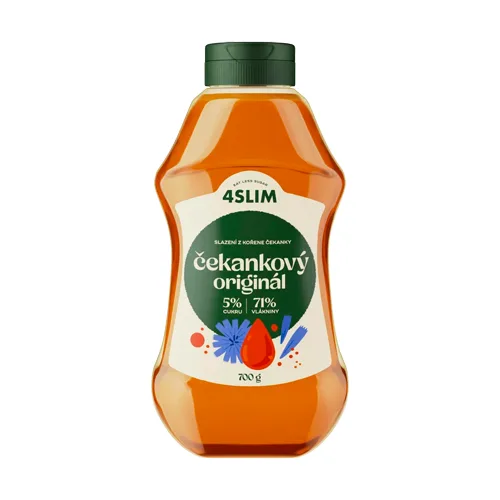

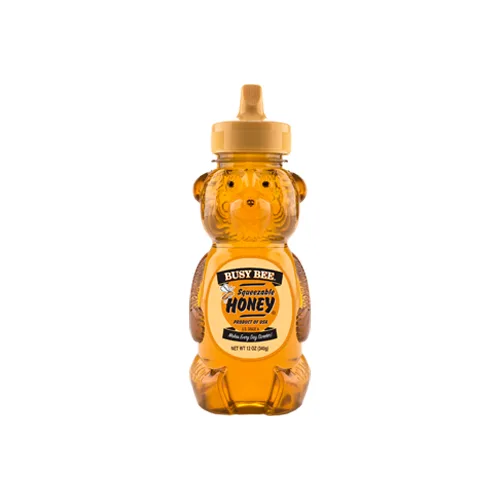

PET, HDPE and glass bottles are used for syrup and topping products across different retail and foodservice applications. The choice depends on the product, bottle size, dispensing method and required presentation.

Bottles may use flip-top caps, dispensing closures or pump dispensers, depending on the viscosity of the product and the intended method of application. Bottle neck dimensions and closure type also affect filling, capping and downstream handling.

Standard Machine Configuration

Bottle filling equipment selection normally starts with four key factors: required output, bottle format, available floor space and hygiene requirements. Establishing these parameters early helps narrow the choice between semi-automatic, linear and monobloc filling systems.

For lower production volumes, a semi-automatic filling machine can provide a practical solution where manual bottle handling remains acceptable. Automatic linear filling machines provide a balance between production output, flexibility and floor space requirements, making them suitable for a wide range of bottling applications. Where higher outputs are required within a compact footprint, a monobloc system can combine multiple packaging operations, such as bottle rinsing, filling and capping, within a single machine platform.

Bottle geometry, closure type, filling accuracy requirements and the desired level of automation also influence machine design and downstream equipment selection.

Optional Equipment

Semi-automatic filling machines are often combined with handheld capping equipment where a simple and cost-effective packaging solution is sufficient. Automatic filling systems can form part of a fully automatic bottling line incorporating bottle handling, capping, labelling, coding and group packaging equipment.

Bottle handling equipment supports the continuous flow of bottles through the packaging line. Depending on the required production output and level of automation, this may include rotary feeding tables, bottle unscramblers and conveyor systems. Rotary feeding tables provide a simple method of bottle accumulation and feeding, while bottle unscramblers automatically orient and transfer bottles onto the conveyor system. As production output increases, bottle unscramblers help maintain a consistent bottle supply while reducing manual handling.

Conveyor selection depends on the bottle design and overall line layout. Table-top chain conveyors are commonly used to transport filled bottles and can accommodate both straight and curved line configurations. Air conveyors are typically used where bottles can be supported by the neck finish and are most commonly applied for empty PET bottle transport before filling.

Applications with higher hygiene requirements may justify additional measures such as bottle rinsing systems, cap treatment modules or Ultra-Clean filling configurations. Bottle rinsing systems are commonly used where additional hygienic control is required before filling. Ultra-Clean systems typically incorporate HEPA-filtered air management and controlled overpressure within the filling area to reduce the risk of product contamination. Product protection requirements may also justify additional options such as inert gas flushing.
