Sauce Bottle Filling Machines

Sauce bottle filling machine selection depends on the product formulation and packaging format. Sauces can range from relatively fluid products such as chilli sauce and barbecue sauce to highly viscous formulations such as mayonnaise, mustard and aioli. Some recipes may also contain vegetable pieces, herbs, spices or other inclusions, which can influence product handling and dosing system design.

PET bottles are widely used for retail sauces, while glass is also common for products such as chilli sauce, barbecue sauce and cooking sauces. Larger HDPE containers are frequently used in HORECA and foodservice applications. Product formulation, bottle format and required production output should all be considered when selecting the filling equipment.

Volumetric piston dosing is suitable for many sauce applications and can accommodate both smooth products and recipes containing small inclusions. Where larger particles are present, enlarged product valves and filling nozzles may be required to maintain unrestricted product flow. The final dosing system type and configuration should therefore be based on the finished product rather than the sauce category alone.

Engineering insights

Filling and Packaging Considerations for Sauces

Product Overview

Sauces vary widely in consistency, from relatively free-flowing products to highly viscous formulations. Recipes may also contain herbs, spices, vegetable pieces or other inclusions, so the product formulation has a direct effect on filling behaviour and dosing requirements.

Some sauces are also processed using hot-fill technology, which should be considered when selecting both the filling equipment and packaging.

Sauces range from free-flowing to highly viscous products
Some formulations contain herbs, spices, vegetable pieces or other inclusions
Hot-fill processing is used for some sauce applications

Filling System

The dosing system should be selected according to the sauce formulation, particularly its viscosity and the type and size of any inclusions. Volumetric piston filling provides a practical solution for many common sauce formulations and covers a wide range of standard applications.

Where a sauce contains larger particles or has more demanding flow characteristics, the dosing system can be configured with suitable valves and product-path dimensions. For hot-fill applications, particular attention should also be given to product-contact components such as seals and gaskets, which need to withstand long-term operation at elevated temperatures.

Volumetric piston filling for many standard sauce formulations
Modified dosing systems for products containing larger inclusions
Seals and gaskets should be suitable for long-term operation at elevated temperatures

Packaging

Sauces are commonly packed in PET, HDPE and glass bottles. Retail products are often supplied in squeeze bottles fitted with dispensing closures, while larger containers are frequently used for foodservice and HORECA applications.

The packaging format depends on the product formulation, dispensing method and target market. Where hot-fill processing is used, the bottle and closure system must be suitable for the required thermal conditions.

PET, HDPE and glass are the most common packaging materials
Squeeze bottles and dispensing closures are widely used for retail products
Larger containers are common in foodservice and HORECA applications
Hot-fill packaging must be suitable for the required thermal process

Machine Range

Our Bottle Filling Machines

Equipment Selection

Bottle Filling Machine Configuration

Standard Machine Configuration

Bottle filling equipment selection normally starts with four key factors: required output, bottle format, available floor space and hygiene requirements. Establishing these parameters early helps narrow the choice between semi-automatic, linear and monobloc filling systems.

For lower production volumes, a semi-automatic filling machine can provide a practical solution where manual bottle handling remains acceptable. Automatic linear filling machines provide a balance between production output, flexibility and floor space requirements, making them suitable for a wide range of bottling applications. Where higher outputs are required within a compact footprint, a monobloc system can combine multiple packaging operations, such as bottle rinsing, filling and capping, within a single machine platform.

Bottle geometry, closure type, filling accuracy requirements and the desired level of automation also influence machine design and downstream equipment selection.

Production output influences the required filling technology and machine capacity
Available floor space affects the most practical machine layout
Hygiene requirements determine the required level of product protection
Semi-automatic, linear and monobloc systems suit different production and operational requirements
Bottle format and closure type influence bottle handling and downstream equipment selection

Optional Equipment

Semi-automatic filling machines are often combined with handheld capping equipment where a simple and cost-effective packaging solution is sufficient. Automatic filling systems can form part of a fully automatic bottling line incorporating bottle handling, capping, labelling, coding and group packaging equipment.

Bottle handling equipment supports the continuous flow of bottles through the packaging line. Depending on the required production output and level of automation, this may include rotary feeding tables, bottle unscramblers and conveyor systems. Rotary feeding tables provide a simple method of bottle accumulation and feeding, while bottle unscramblers automatically orient and transfer bottles onto the conveyor system. As production output increases, bottle unscramblers help maintain a consistent bottle supply while reducing manual handling.

Conveyor selection depends on the bottle design and overall line layout. Table-top chain conveyors are commonly used to transport filled bottles and can accommodate both straight and curved line configurations. Air conveyors are typically used where bottles can be supported by the neck finish and are most commonly applied for empty PET bottle transport before filling.

Applications with higher hygiene requirements may justify additional measures such as bottle rinsing systems, cap treatment modules or Ultra-Clean filling configurations. Bottle rinsing systems are commonly used where additional hygienic control is required before filling. Ultra-Clean systems typically incorporate HEPA-filtered air management and controlled overpressure within the filling area to reduce the risk of product contamination. Product protection requirements may also justify additional options such as inert gas flushing.

Handheld capping equipment for semi-automatic filling machines
Bottle unscramblers and rotary feeding tables
Conveyor systems, including table-top chain and air conveyors
Capping machines and cap handling systems
Automatic labelling machines
Coding and marking equipment
Group packaging equipment
Bottle rinsing systems
Cap treatment and sterilisation modules
Ultra-Clean filling configurations for applications requiring enhanced microbiological protection
Inert gas flushing systems (e.g. nitrogen)

Packaging Examples

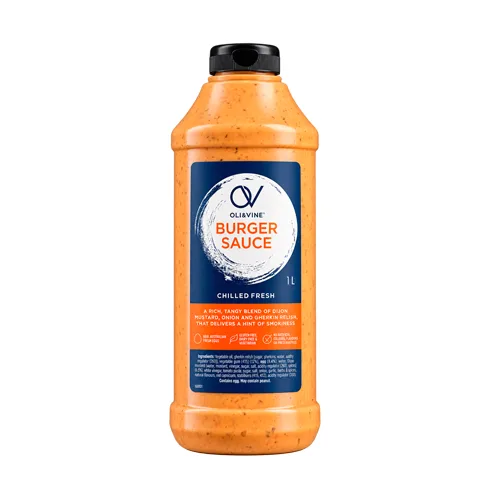

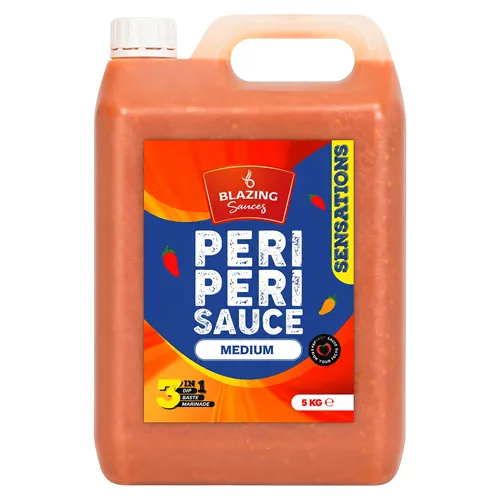

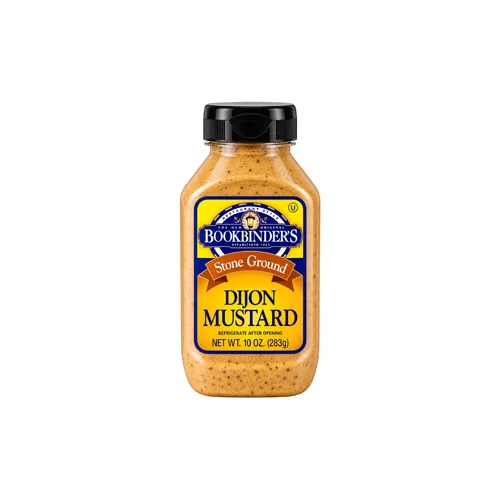

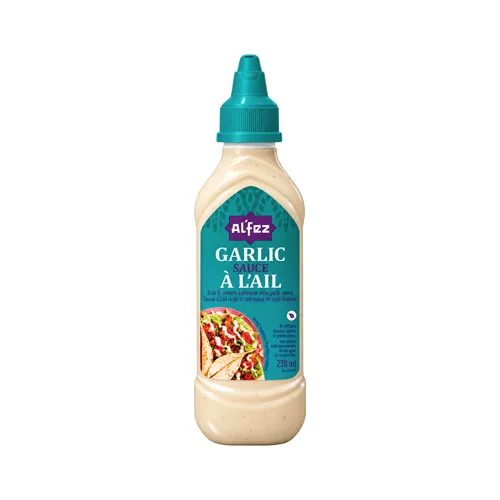

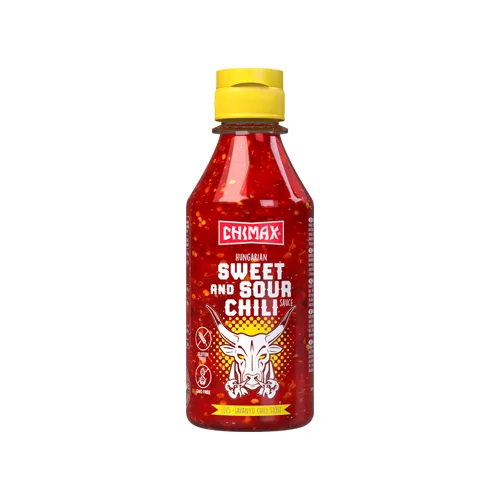

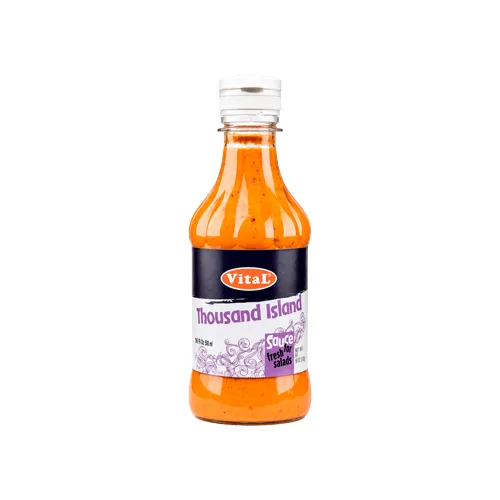

Typical Sauce Bottle Packaging

Get in touch

Planning a Bottling Project?

Selecting a filling machine for sauces depends largely on the recipe and packaging format. Product viscosity, inclusions, filling method, bottle and closure format and required output all need to be considered when defining the machine configuration. Share your application details with our engineering team and we can help identify the most suitable sauce filling system and machine configuration for your project.
