Ketchup Bottle Filling Machines

Product Overview

Ketchup is a high-viscosity product with significantly different flow behaviour from free-flowing liquids. Formulations can also contain spices, herbs or small vegetable pieces that need to pass reliably through the filling system.

Ketchup is commonly processed using hot-fill technology. Where hot filling is used, both the filling equipment and packaging must be suitable for the required process conditions.

Filling System

Volumetric piston filling provides a practical solution for most ketchup applications and delivers controlled dosing of viscous products. Where formulations contain vegetable pieces or other inclusions, the dosing system can be adapted accordingly to maintain reliable product flow.

For hot-fill applications, the filling system must be suitable for the required product temperature and process conditions. Particular attention should also be given to product-contact components such as seals and gaskets, which need to withstand long-term operation at elevated temperatures without compromising filling performance or reliability.

Packaging

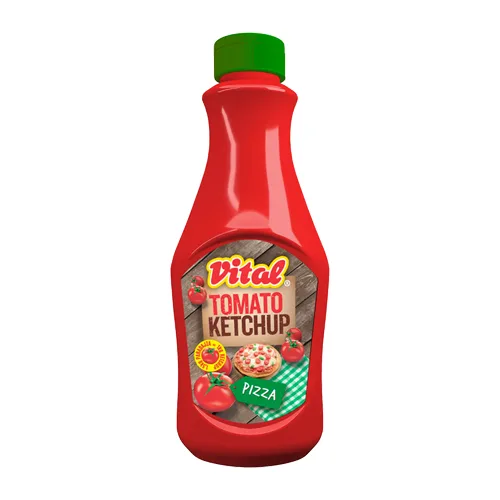

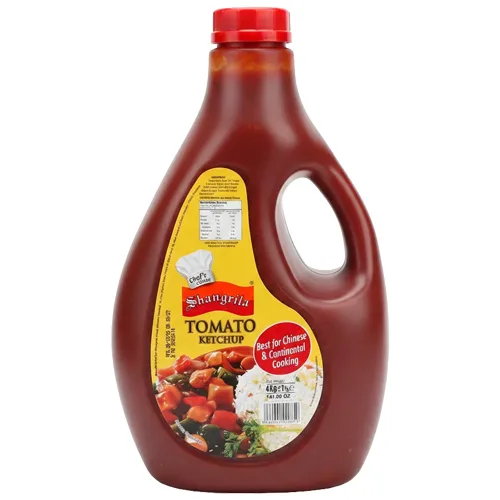

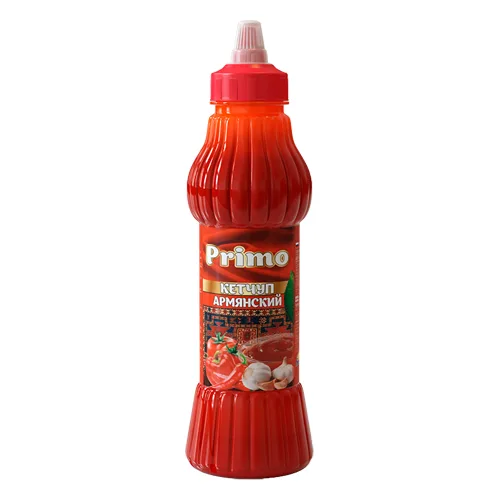

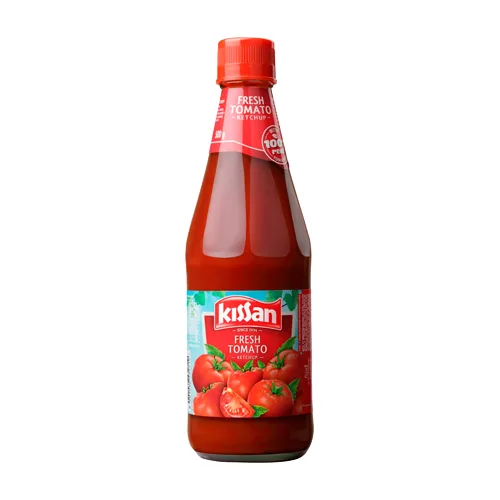

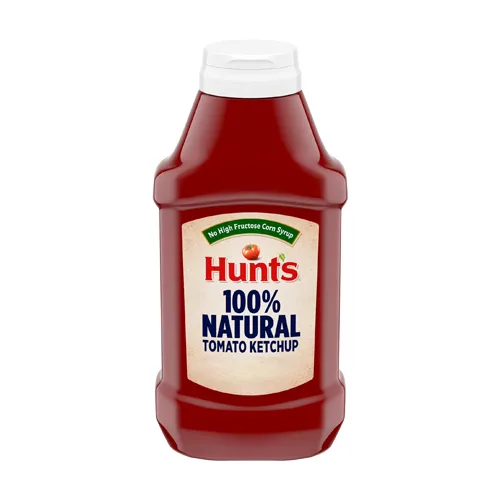

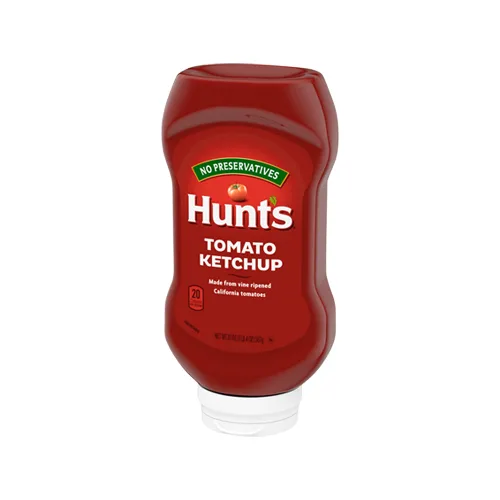

Ketchup is commonly packed in PET, HDPE and glass bottles. Retail products are often supplied in squeeze bottles fitted with dispensing closures, while glass bottles remain common for premium product ranges.

The choice of bottle and closure depends on the product formulation, dispensing method and target market. For hot-fill applications, the bottle and closure system must be designed and validated for the required thermal conditions to maintain package performance.

Standard Machine Configuration

Bottle filling equipment selection normally starts with four key factors: required output, bottle format, available floor space and hygiene requirements. Establishing these parameters early helps narrow the choice between semi-automatic, linear and monobloc filling systems.

For lower production volumes, a semi-automatic filling machine can provide a practical solution where manual bottle handling remains acceptable. Automatic linear filling machines provide a balance between production output, flexibility and floor space requirements, making them suitable for a wide range of bottling applications. Where higher outputs are required within a compact footprint, a monobloc system can combine multiple packaging operations, such as bottle rinsing, filling and capping, within a single machine platform.

Bottle geometry, closure type, filling accuracy requirements and the desired level of automation also influence machine design and downstream equipment selection.

Optional Equipment

Semi-automatic filling machines are often combined with handheld capping equipment where a simple and cost-effective packaging solution is sufficient. Automatic filling systems can form part of a fully automatic bottling line incorporating bottle handling, capping, labelling, coding and group packaging equipment.

Bottle handling equipment supports the continuous flow of bottles through the packaging line. Depending on the required production output and level of automation, this may include rotary feeding tables, bottle unscramblers and conveyor systems. Rotary feeding tables provide a simple method of bottle accumulation and feeding, while bottle unscramblers automatically orient and transfer bottles onto the conveyor system. As production output increases, bottle unscramblers help maintain a consistent bottle supply while reducing manual handling.

Conveyor selection depends on the bottle design and overall line layout. Table-top chain conveyors are commonly used to transport filled bottles and can accommodate both straight and curved line configurations. Air conveyors are typically used where bottles can be supported by the neck finish and are most commonly applied for empty PET bottle transport before filling.

Applications with higher hygiene requirements may justify additional measures such as bottle rinsing systems, cap treatment modules or Ultra-Clean filling configurations. Bottle rinsing systems are commonly used where additional hygienic control is required before filling. Ultra-Clean systems typically incorporate HEPA-filtered air management and controlled overpressure within the filling area to reduce the risk of product contamination. Product protection requirements may also justify additional options such as inert gas flushing.
