Kefir Bottle Filling Machines

Choosing a kefir bottle filling machine depends not only on the required production capacity, but also on how the product is made and how it behaves during filling. The resulting product consistency can affect the way the filling system needs to handle the kefir.

Kefir can be produced using different processes, resulting in different product viscosities and structures. Set and stirred kefir may therefore require different approaches to filling, particularly where the product structure needs to be maintained during transfer and filling. PET bottles are commonly used for kefir, while the bottle format and production requirements also need to be considered when selecting the equipment.

An important point with kefir is that filling quality may not always be apparent immediately after production. Changes to the product structure during pumping and filling can become noticeable only after several days of storage. This makes hygienic design and controlled product handling important considerations when specifying the filling equipment.

Engineering insights

Filling and Packaging Considerations for Kefir

Product Overview

Kefir is a fermented dairy beverage with a higher viscosity and different flow behaviour than fresh milk. These characteristics influence product transfer, dosing performance and filling behaviour.

Product consistency can vary according to the formulation and production process. For this reason, filling equipment selection should be based on the actual product characteristics rather than the product name alone.

Fermented dairy beverage with a relatively viscous consistency
Flow behaviour differs from fresh milk
Filling equipment should match the actual product formulation

Filling System

Volumetric piston filling provides a practical standard solution for drinking kefir. The piston system gives controlled volumetric dosing and suits the relatively viscous nature of the product.

For applications requiring higher fill-weight accuracy, net weight filling provides an alternative dosing method. The choice between the two systems should reflect the required filling performance, production capacity and level of control.

Volumetric piston filling for standard kefir applications
Net weight filling where higher fill-weight accuracy is required
Filling system selected according to product behaviour and production requirements

Packaging

Kefir uses similar retail bottle formats to drinking yoghurt, with PET as the main bottle material and HDPE also used in some markets. Retail formats typically range up to around 1 litre, with smaller bottles up to approximately 500 ml commonly used for single-serve products.

Bottle format, size and closure selection should reflect both market requirements and the handling requirements of the filling process.

Mainly PET bottles, with HDPE also used
Retail formats typically up to 1 litre
Smaller formats up to approximately 500 ml are common

Machine Range

Our Bottle Filling Machines

Equipment Selection

Bottle Filling Machine Configuration

Standard Machine Configuration

Bottle filling equipment selection normally starts with four key factors: required output, bottle format, available floor space and hygiene requirements. Establishing these parameters early helps narrow the choice between semi-automatic, linear and monobloc filling systems.

For lower production volumes, a semi-automatic filling machine can provide a practical solution where manual bottle handling remains acceptable. Automatic linear filling machines provide a balance between production output, flexibility and floor space requirements, making them suitable for a wide range of bottling applications. Where higher outputs are required within a compact footprint, a monobloc system can combine multiple packaging operations, such as bottle rinsing, filling and capping, within a single machine platform.

Bottle geometry, closure type, filling accuracy requirements and the desired level of automation also influence machine design and downstream equipment selection.

Production output influences the required filling technology and machine capacity
Available floor space affects the most practical machine layout
Hygiene requirements determine the required level of product protection
Semi-automatic, linear and monobloc systems suit different production and operational requirements
Bottle format and closure type influence bottle handling and downstream equipment selection

Optional Equipment

Semi-automatic filling machines are often combined with handheld capping equipment where a simple and cost-effective packaging solution is sufficient. Automatic filling systems can form part of a fully automatic bottling line incorporating bottle handling, capping, labelling, coding and group packaging equipment.

Bottle handling equipment supports the continuous flow of bottles through the packaging line. Depending on the required production output and level of automation, this may include rotary feeding tables, bottle unscramblers and conveyor systems. Rotary feeding tables provide a simple method of bottle accumulation and feeding, while bottle unscramblers automatically orient and transfer bottles onto the conveyor system. As production output increases, bottle unscramblers help maintain a consistent bottle supply while reducing manual handling.

Conveyor selection depends on the bottle design and overall line layout. Table-top chain conveyors are commonly used to transport filled bottles and can accommodate both straight and curved line configurations. Air conveyors are typically used where bottles can be supported by the neck finish and are most commonly applied for empty PET bottle transport before filling.

Applications with higher hygiene requirements may justify additional measures such as bottle rinsing systems, cap treatment modules or Ultra-Clean filling configurations. Bottle rinsing systems are commonly used where additional hygienic control is required before filling. Ultra-Clean systems typically incorporate HEPA-filtered air management and controlled overpressure within the filling area to reduce the risk of product contamination. Product protection requirements may also justify additional options such as inert gas flushing.

Handheld capping equipment for semi-automatic filling machines
Bottle unscramblers and rotary feeding tables
Conveyor systems, including table-top chain and air conveyors
Capping machines and cap handling systems
Automatic labelling machines
Coding and marking equipment
Group packaging equipment
Bottle rinsing systems
Cap treatment and sterilisation modules
Ultra-Clean filling configurations for applications requiring enhanced microbiological protection
Inert gas flushing systems (e.g. nitrogen)

Packaging Examples

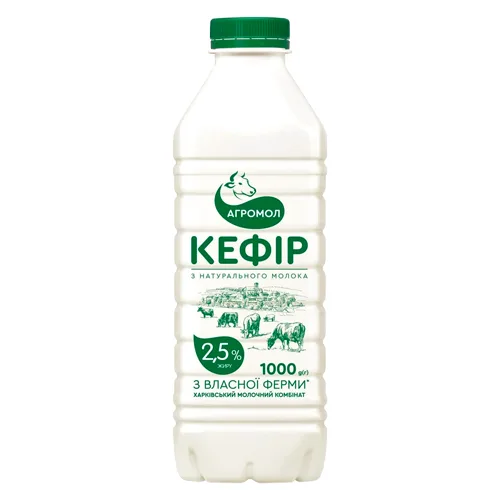

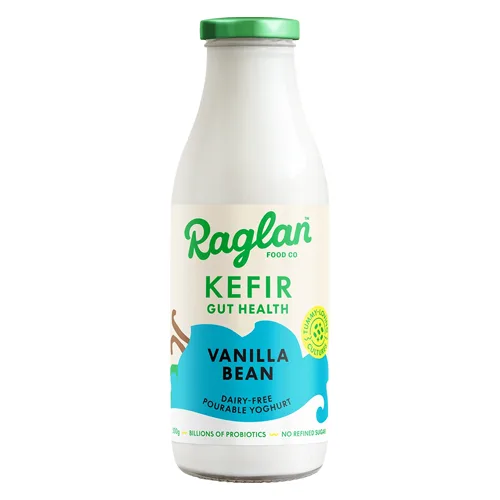

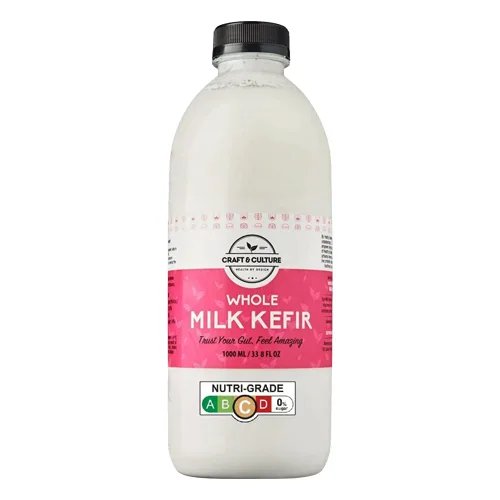

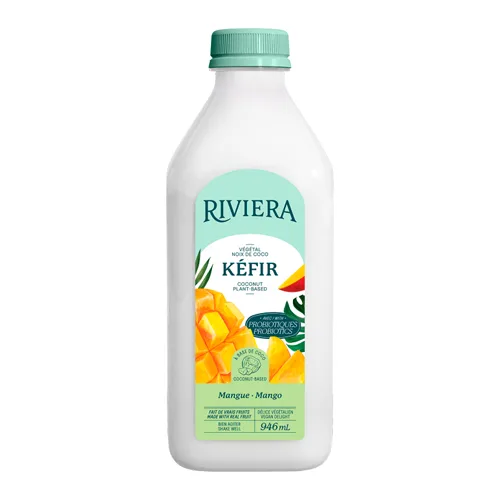

Typical Kefir Bottle Packaging

Get in touch

Planning a Bottling Project?

Selecting a kefir filling machine depends on the product consistency, bottle format and required production output. Product characteristics can influence both the dosing method and the final equipment configuration. Tell us about your kefir filling project, and we’ll help specify a suitable bottle filling solution.
