Household Chemical Bottle Filling Machines

Product Overview

Household chemical products include liquid detergents, fabric softeners, dishwashing liquids, surface cleaners, bathroom cleaners, glass cleaners, disinfectants and other cleaning formulations. Product viscosity can range from low-viscosity liquids to thicker formulations, while some products can generate significant foam during filling.

Some formulations can also be chemically aggressive or sensitive to contamination. Product-contact materials, seals and gaskets therefore need to be selected for compatibility with the formulation and the expected operating conditions.

Filling System

Filling technology should be matched to the product’s viscosity, foaming behaviour, filling requirements and container format.

Gravity filling can be suitable for free-flowing, low-viscosity products where a simple filling arrangement is sufficient. Overflow filling can be useful where a consistent fill level is important, particularly with containers where the visual appearance of the fill is relevant.

Volumetric piston filling is suitable for a broader range of liquid and viscous products where controlled dosing is required. For foaming or otherwise difficult-to-fill formulations, nozzle configuration and filling parameters can be adapted to improve product control and reduce excessive foam or spillage.

Packaging

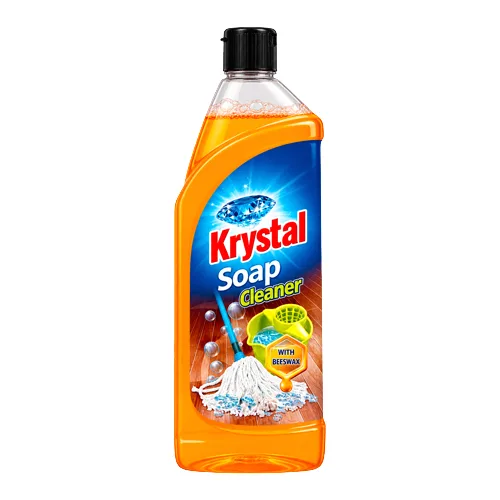

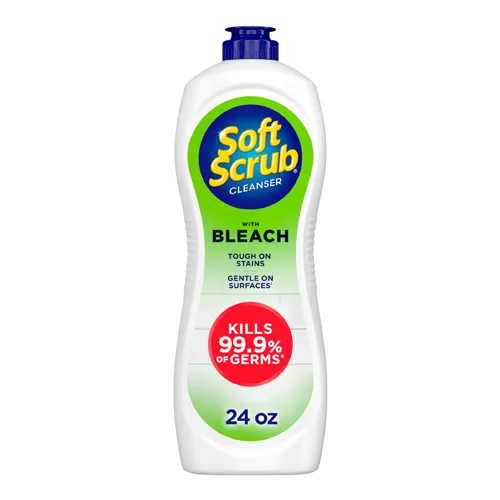

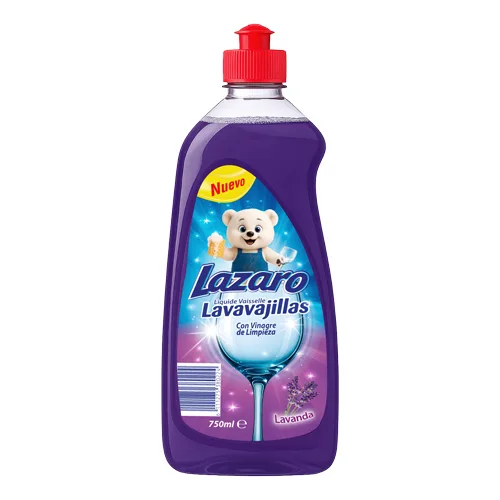

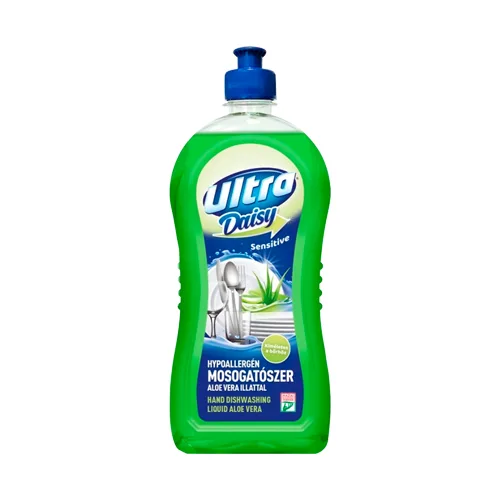

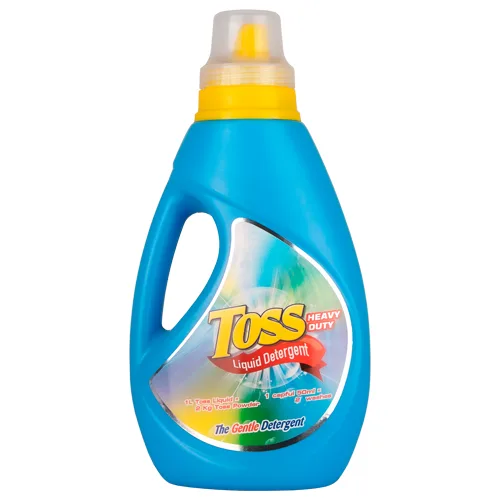

HDPE and PET bottles are widely used for household chemical products, although the appropriate material depends on the formulation, packaging format and application. HDPE is commonly used for detergents and many cleaning products because of its chemical resistance, while PET is also used for selected household chemical applications.

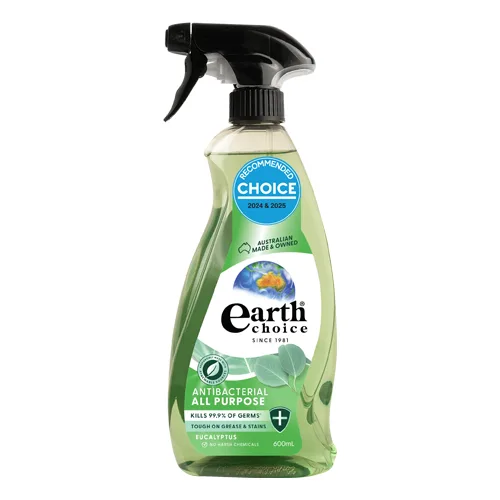

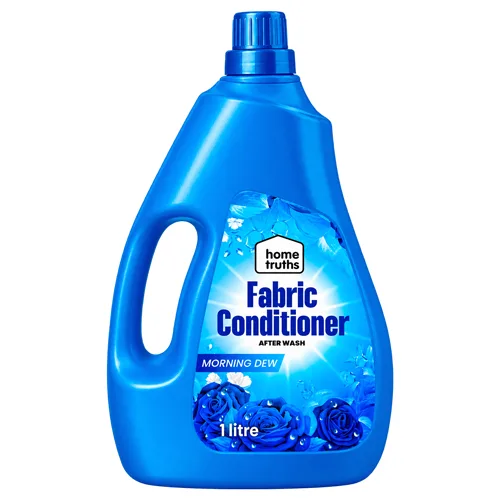

Closure selection depends on the product and how it is intended to be dispensed. Common options include measuring caps, trigger sprayers, dispensing closures, flip-top closures and child-resistant closures.

Standard Machine Configuration

Bottle filling equipment selection normally starts with four key factors: required output, bottle format, available floor space and hygiene requirements. Establishing these parameters early helps narrow the choice between semi-automatic, linear and monobloc filling systems.

For lower production volumes, a semi-automatic filling machine can provide a practical solution where manual bottle handling remains acceptable. Automatic linear filling machines provide a balance between production output, flexibility and floor space requirements, making them suitable for a wide range of bottling applications. Where higher outputs are required within a compact footprint, a monobloc system can combine multiple packaging operations, such as bottle rinsing, filling and capping, within a single machine platform.

Bottle geometry, closure type, filling accuracy requirements and the desired level of automation also influence machine design and downstream equipment selection.

Optional Equipment

Semi-automatic filling machines are often combined with handheld capping equipment where a simple and cost-effective packaging solution is sufficient. Automatic filling systems can form part of a fully automatic bottling line incorporating bottle handling, capping, labelling, coding and group packaging equipment.

Bottle handling equipment supports the continuous flow of bottles through the packaging line. Depending on the required production output and level of automation, this may include rotary feeding tables, bottle unscramblers and conveyor systems. Rotary feeding tables provide a simple method of bottle accumulation and feeding, while bottle unscramblers automatically orient and transfer bottles onto the conveyor system. As production output increases, bottle unscramblers help maintain a consistent bottle supply while reducing manual handling.

Conveyor selection depends on the bottle design and overall line layout. Table-top chain conveyors are commonly used to transport filled bottles and can accommodate both straight and curved line configurations. Air conveyors are typically used where bottles can be supported by the neck finish and are most commonly applied for empty PET bottle transport before filling.

Applications with higher hygiene requirements may justify additional measures such as bottle rinsing systems, cap treatment modules or Ultra-Clean filling configurations. Bottle rinsing systems are commonly used where additional hygienic control is required before filling. Ultra-Clean systems typically incorporate HEPA-filtered air management and controlled overpressure within the filling area to reduce the risk of product contamination. Product protection requirements may also justify additional options such as inert gas flushing.
