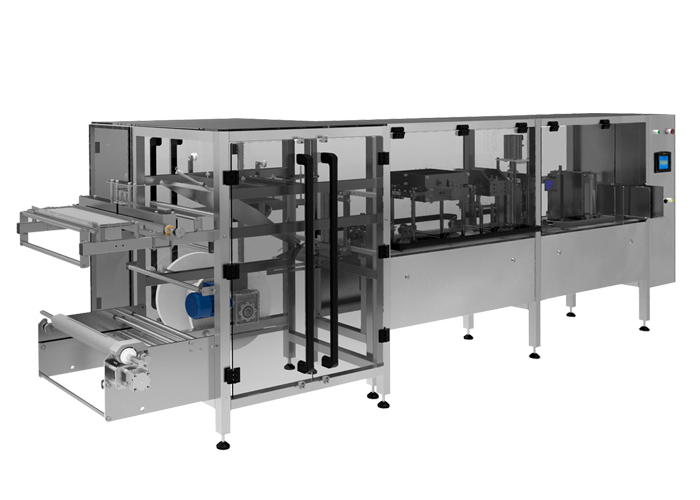

Automatic Doypack Forming Machine for producing high-quality Doypack pouches. Ensures efficient pouch forming for food, beverage, and non-food packaging.

DESCRIPTION

The automatic Doypack forming machine ADFM-1 produces empty Doypack pouches with an open top from a roll of laminated film. Operators can then fill and seal the pouches either manually or using a packaging machine.

It offers excellent versatility, forming standard, shaped, or zip-lock Doypacks, as well as bottom K-seal packets and sealed sachets. These pouches are widely used across the food, chemical, cosmetic, and pharmaceutical industries for packaging liquids, viscous products, powders, and small items.

With a stainless steel frame and protective acrylic guards, the machine ensures safe and reliable operation. It also supports additional features, including zip-lock closures, V-notches for easy opening, hanging slots, rounded corners, and various pouch styles.

TECHNICAL SPECIFICATIONS

Packaging type Doypack pouch
Speed*, max. 3,000 pieces/hour
Packaging material Laminated films (PET/PE, PET/Alu/PE)
Doypack width, max. 240 mm
Doypack length, max. 350 mm
Roll diameter, max. 500 mm
Electricals 380 V, 50 Hz
Power 5 kW
Compressed air consumption 450 l/min at 6 Bar
Dimensions Length*Width*Height, max. 5000*1500*1500 mm
Weight, max. 900 kg

*The speed depends on packaging material quality, pouch type, and dimensions.

OPTIONAL EQUIPMENT

  • Unit for manufacturing Doypack with a zip-lock closure
  • V-notch for easy opening
  • Euro slot or round hole for display hanging
  • Pouches with rounded corners
  • Unit for producing custom-shaped bags
  • Changeover parts for 2- or 3-sided sealed sachets
  • Quick-change parts for pouches of varying dimensions
  • Doypacks with cut corners for subsequent spout sealing
  • Custom-shaped sealing for the bag top
  • UV lamp for film sterilisation
